| Place of Origin: | China |
| Brand Name: | SUNBOILER |
| Model Number: | 480-1800KW |
| Minimum Order Quantity: | 1 |
| Price: | - |
| Packaging Details: | Wooden frame |
| Delivery Time:(Delivery Time) | 30 days |
| Payment Terms: | 30% advance payment, full payment before shipment |
The CDRS series electric atmospheric pressure hot water boiler adopts the latest electric heating technology and brand-new thermal stability technology. It features constant-temperature heating, high heat conversion efficiency, minimal impact from power supply voltage fluctuation, and an extended natural service life.The electric heating tube boasts strong corrosion resistance. Combined with an advanced furnace body structure design, it not only delivers a longer service life but also enables the boiler to reach a thermal efficiency as high as 98%.
The boiler operates with extremely low noise, achieving zero pollution and zero emissions.Equipped with a high-performance intelligent controller, it supports automatic switching and automatic temperature regulation with one-key operation.
It is fully equipped with comprehensive safety protections, ensuring efficient, stable and safe operation, and can easily realize IoT connection.All electric heating boilers of the full series are delivered as integral units. The electrical configuration adopts internationally renowned brand components.
With advanced and reasonable design and exquisite craftsmanship, the equipment is extremely easy to operate and maintain, features good heat dissipation, and is durable for long-term use.With an integrated appearance design, it has an elegant look, supports free combination, and features simple installation and convenient transportation.It is widely applied in places with heating and domestic hot water demands such as schools, hospitals, hotels, catering establishments, commercial residences and government institutions. It is also applicable to any occasion requiring industrial water heating.
It is widely applied in places with heating and domestic hot water demands such as schools, hospitals, hotels, catering establishments, commercial residences and government institutions. It is also applicable to any occasion requiring industrial water heating.
| Main Technical Parameters of CDRS Series Electric Atmospheric Pressure Hot Water Boiler | ||||||||||
| Technical Parameters | Model | Unit | CDRS | CDRS | CDRS | CDRS | CDRS | CDRS | CDRS | |
| 60 | 80 | 120 | 180 | 240 | 360 | 480 | ||||
| Rated Thermal Power | KW | 60 | 80 | 120 | 180 | 240 | 360 | 480 | ||
| Working Pressure | — | Atmospheric pressure | ||||||||
| Designed Inlet/Outlet Water Temperature | ℃ | 85/65 | ||||||||
| Maximum Outlet Water Temperature | ℃ | 95 | ||||||||
| Thermal Efficiency | % | 98 | ||||||||
| Power Supply Type | V | 380/50 | ||||||||
| Heating Tube Configuration | KW*pcs | 15*4 | 20*4 | 24*5 | 30*6 | 30*8 | 30*12 | 30*16 | ||
| Total Power Consumption | KW | 60 | 80 | 120 | 180 | 240 | 360 | 480 | ||
| Inlet and Outlet Water Interface | DN | 50 | 50 | 50 | 50 | 50 | 65 | 80 | ||
| Atmospheric Vent | DN | 50 | 50 | 50 | 50 | 50 | 65 | 80 | ||
| Drain Outlet | DN | 25 | 25 | 25 | 25 | 25 | 40 | 40 | ||

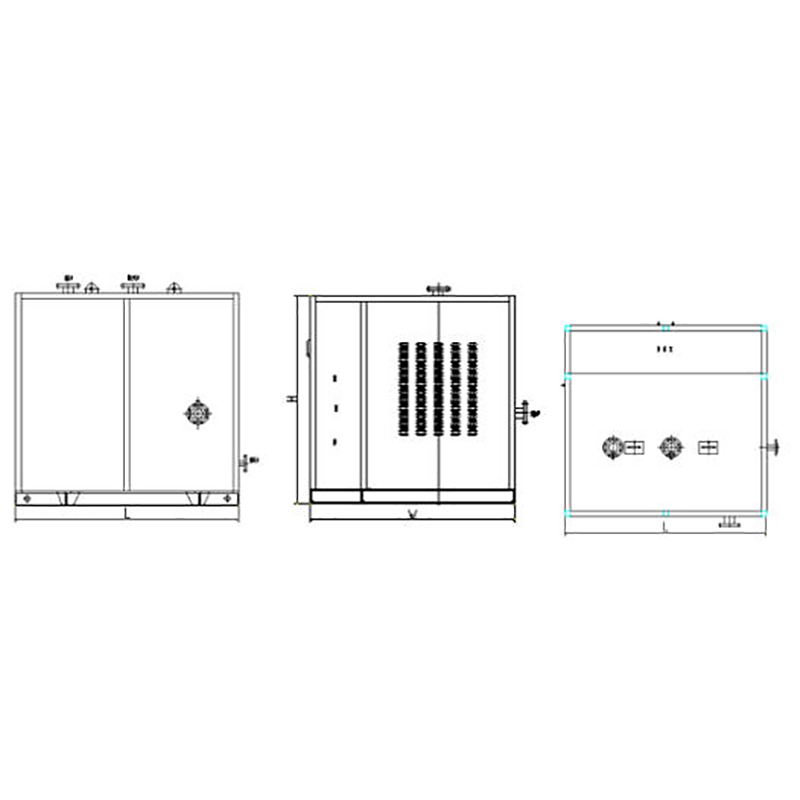

| Overall Dimensions | L (Length) | mm | 650 | 650 | 720 | 720 | 720 | 1800 | 1800 | |
| W (Width) | mm | 650 | 650 | 720 | 720 | 720 | 1600 | 1600 | ||
| H (Height) | mm | 900 | 900 | 1200 | 1400 | 1550 | 1800 | 1800 | ||
| Transport Weight | kg | 180 | 185 | 220 | 280 | 300 | 1270 | 1520 | ||
| Main Technical Parameters of CDRS Series Electric Atmospheric Pressure Hot Water Boiler | ||||||||||
| Technical Parameters | Model | Unit | CDRS | CDRS | CDRS | CDRS | CDRS | CDRS | CDRS | |
| 600 | 720 | 900 | 1080 | 1440 | 1500 | 1800 | ||||
| Rated Thermal Power | KW | 600 | 720 | 900 | 1080 | 1440 | 1500 | 1800 | ||
| Working Pressure | Atmospheric pressure | |||||||||
| Designed Inlet/Outlet Water Temperature | ℃ | 85/65 | ||||||||
| Maximum Outlet Water Temperature | ℃ | 95 | ||||||||
| Thermal Efficiency | % | 98 | ||||||||
| Power Supply Type | V | 380/50 | ||||||||
| Heating Tube Configuration | KW*pcs | 30*20 | 30*24 | 30*30 | 30*36 | 30*48 | 30*50 | 30*60 | ||
| Total Power Consumption | KW | 600 | 720 | 900 | 1080 | 1440 | 1500 | 1800 | ||
| Inlet and Outlet Water Interface | DN | 80 | 80 | 100 | 100 | 125 | 125 | 150 | ||
| Atmospheric Vent | DN | 80 | 80 | 100 | 100 | 125 | 125 | 150 | ||
| Drain Outlet | DN | 40 | 40 | 40 | 40 | 40 | 40 | 40 | ||
| Overall Dimensions | L (Length) | mm | 2000 | 2000 | 2200 | 2200 | 2200 | 2200 | 2400 | |
| W (Width) | mm | 1800 | 1800 | 2000 | 2000 | 2200 | 2200 | 2300 | ||
| H (Height) | mm | 1900 | 1900 | 2300 | 2300 | 2300 | 2300 | 2300 | ||
| Transport Weight | kg | 1660 | 1840 | 2230 | 2350 | 2850 | 2970 | 3230 | ||
