Place of Origin: China
Brand Name: SUNBOILER
| Place of Origin: | China |
| Brand Name: | SUNBOILER |
| Model Number: | 120-2300MW |
| Minimum Order Quantity: | 1 |
| Price: | - |
| Packaging Details: | Wooden frame |
| Delivery Time:(Delivery Time) | 30 days |
| Payment Terms: | 30% advance payment, full payment before shipment |
YQL series oil/gas-fired organic heat carrier boilers take combustible gas and diesel as fuels, and thermal conduction oil as the heat carrier. By means of forced liquid-phase circulation through a circulating oil pump, the boiler transfers heat energy to thermal equipment, after which most of the waste heat returns to the boiler for reheating. As a high-efficiency and energy-saving special industrial furnace, it can achieve a relatively high operating temperature under atmospheric pressure or low working pressure.
Widely used in the chemical industry, rubber and plastics industry, building materials and wood industry, food, grain and oil processing industry, paper making and printing industry, composite and new materials industry, metal die-casting and mold processing industry, textile printing and dyeing industry, as well as biomass and wood drying industry.
| YQL Oil/Gas Fired Vertical Thermal Oil Boiler | ||||||||||||||
| Rated Thermal Power | Model | YYL-120 | YYL-180 | YYL-240 | YYL-300 | YYL-350 | YYL-500 | YYL-600 | YYL-900 | YYL-1200 | YYL-1500 | YYL-1800 | YYL-2300 | |
| MW | 120 | 180 | 240 | 300 | 350 | 500 | 600 | 900 | 1200 | 1500 | 1800 | 2300 | ||
| 104kcal/h | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 75 | 100 | 130 | 150 | 200 | ||
| Maximum Operating Temperature | ℃ | 320(350) | ||||||||||||
| Working Pressure | MPa | 0.7/1.0/1.25 | ||||||||||||
| Design Thermal Efficiency | % | 90~92 | ||||||||||||
| Consumption | Natural gas | Nm³/h | 5.2 | 7.9 | 10 | 13 | 15 | 22 | 26 | 40 | 52 | 61 | 79 | 105 |
| Diesel | KG/h | 12 | 17 | 23 | 30 | 35 | 49 | 57.5 | 87 | 118 | 138 | 177 | 236 | |
| Oil outlet / Oil return port diameter | DN | 40 | 40 | 40 | 50 | 50 | 65 | 65 | 100 | 100 | 125 | 150 | 150 | |
| Chimney Diameter | mm | 150 | 150 | 230 | 230 | 230 | 280 | 280 | 350 | 430 | 430 | 550 | 550 | |
| Weight Of Boiler | Kg | 1.2 | 1.35 | 1.6 | 2.2 | 2.5 | 3.1 | 3.5 | 6 | 7.8 | 8.5 | 11 | 13 | |

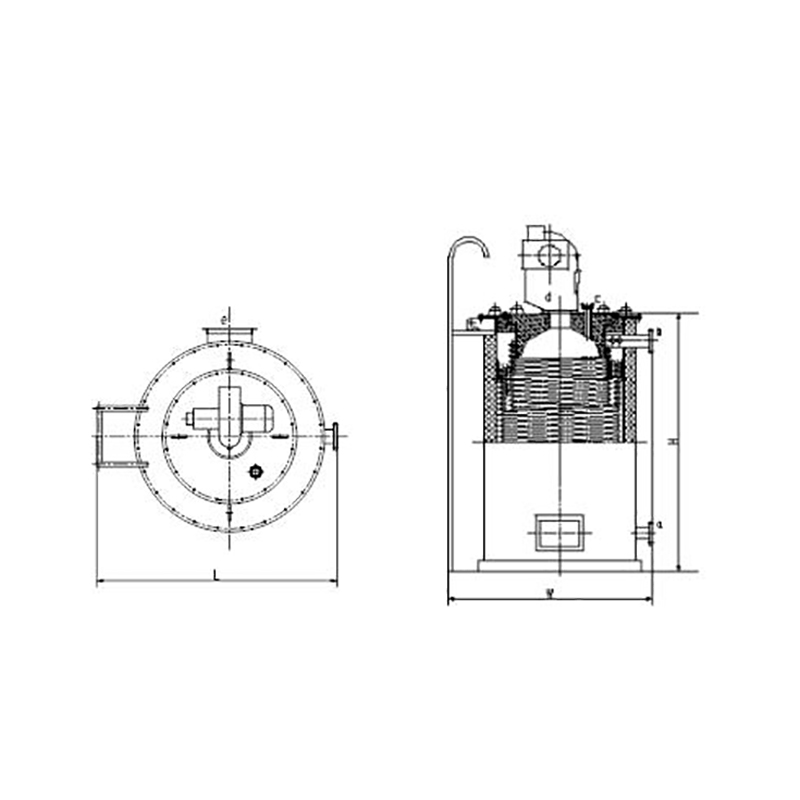

| Boiler dimensions | L(mm) | 1000 | 1000 | 1000 | 1300 | 1300 | 1400 | 1540 | 1700 | 1700 | 1950 | 1950 | 1950 | |
| W(mm) | 1000 | 1000 | 1000 | 1300 | 1300 | 1400 | 1540 | 1700 | 1700 | 1950 | 1950 | 1950 | ||
| H(mm) | 2060 | 2290 | 2290 | 2650 | 2950 | 3350 | 3400 | 4750 | 5220 | 5420 | 5670 | 6200 | ||
